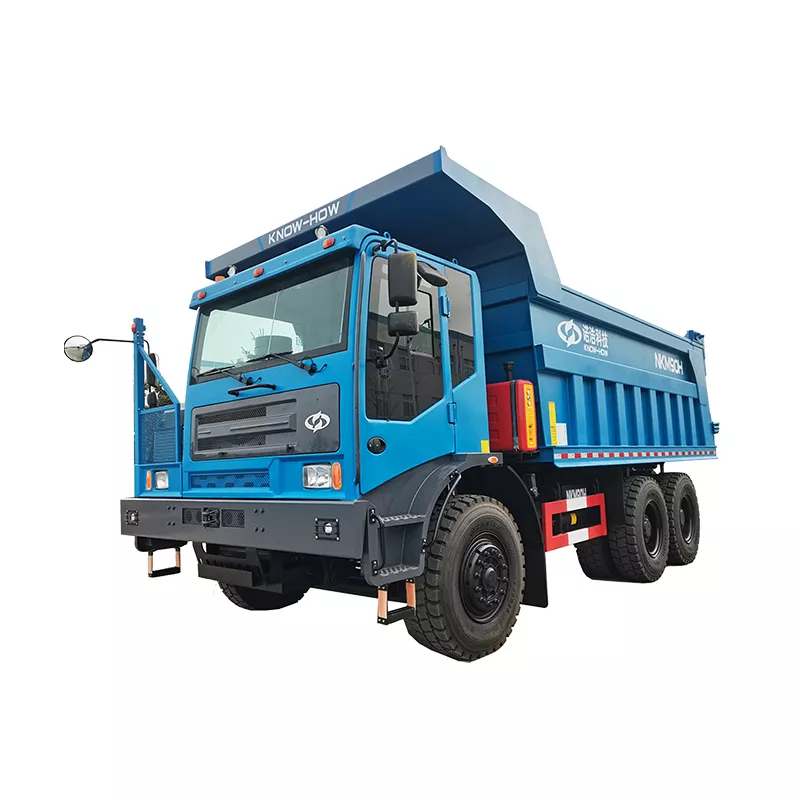

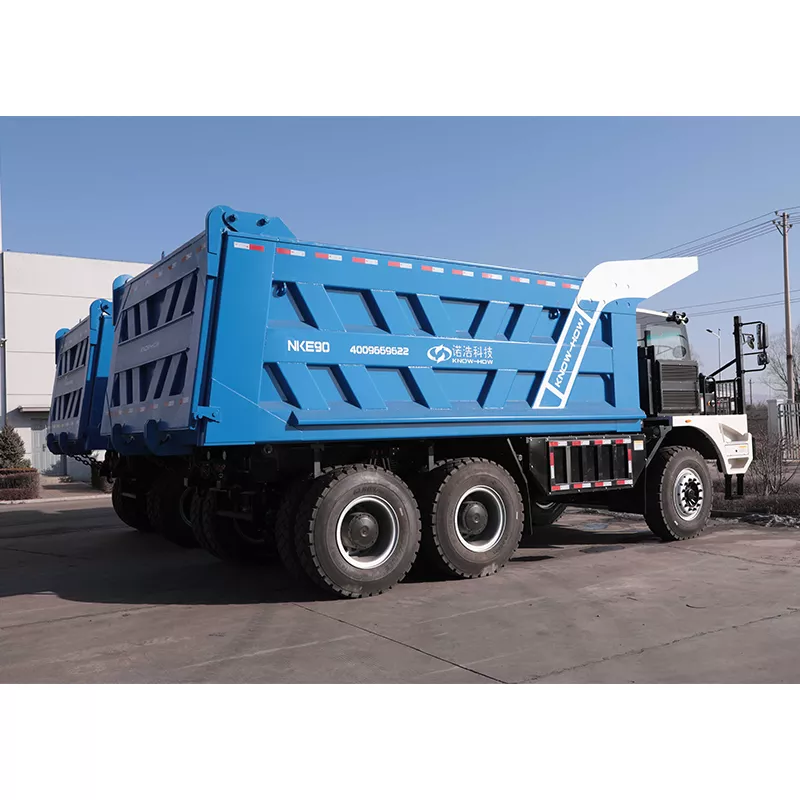

| Diesel Dump truck Parameters | ||
| Vehicle Spec. | Unit | NKM90H |
| Total Vehicle Weight | KG | 90000 |
| Rated Loading Weight | KG | 59000 |
| Tank Cubic Volume | Cubic Meter | 33(Flat),36(Stack) |
| Axle Loading Front/Middle/Rear | t | 20+35+35 |
| Engine Type/HorsePower | Hp | YC6K480-GT30(480hp) |
| Gearbox type | / | Faust 7DS220/MT(Mechanical Transmission) |
| Steering system | / | Full hydraulic steering |

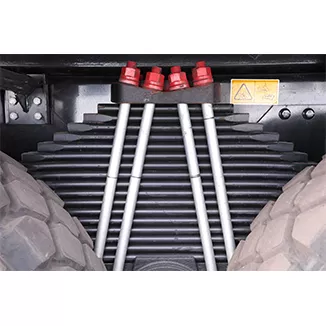

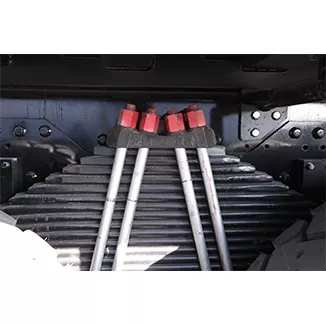

| Suspension System(Front/rear) | / | Hydro-pneumatic spring/balance shaft general hanging |
| Braket System | / | Welded rigid tank frame /480x140 |
| Vehicle Dimension | mm | 9100*3450*4130 |
| Driven Type | / | 6*4 |
| Max Speed | km/h | 43 |
| Min Turning Radius | m | 11.5 |
| Vehicle Length | mm | 9100 |
| Front Middle Axle wheel base | mm | 3800 |
| Middle Rear Axle Wheel Base | mm | 1560 |
| Vehicle Height | mm | 4130 |
| Vehicle Width | mm | 3450 |
| Rear Wheel distance | mm | 2526 |
