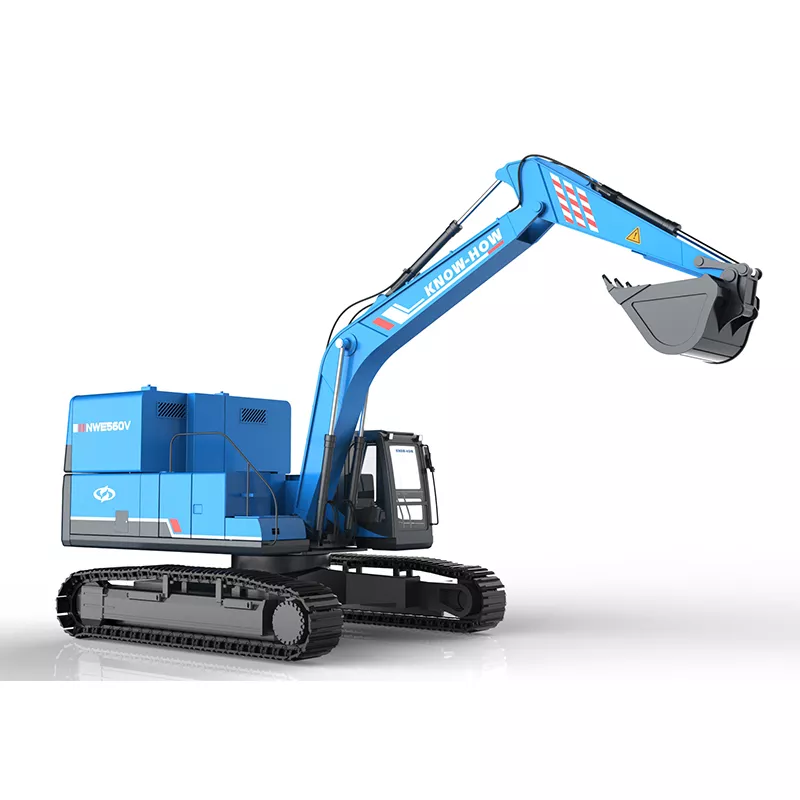

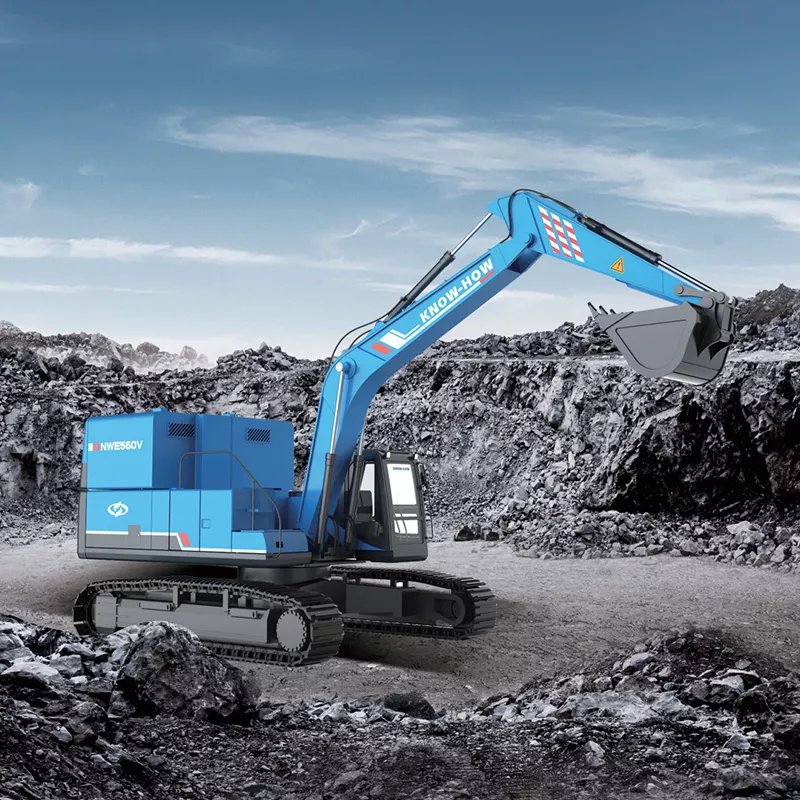

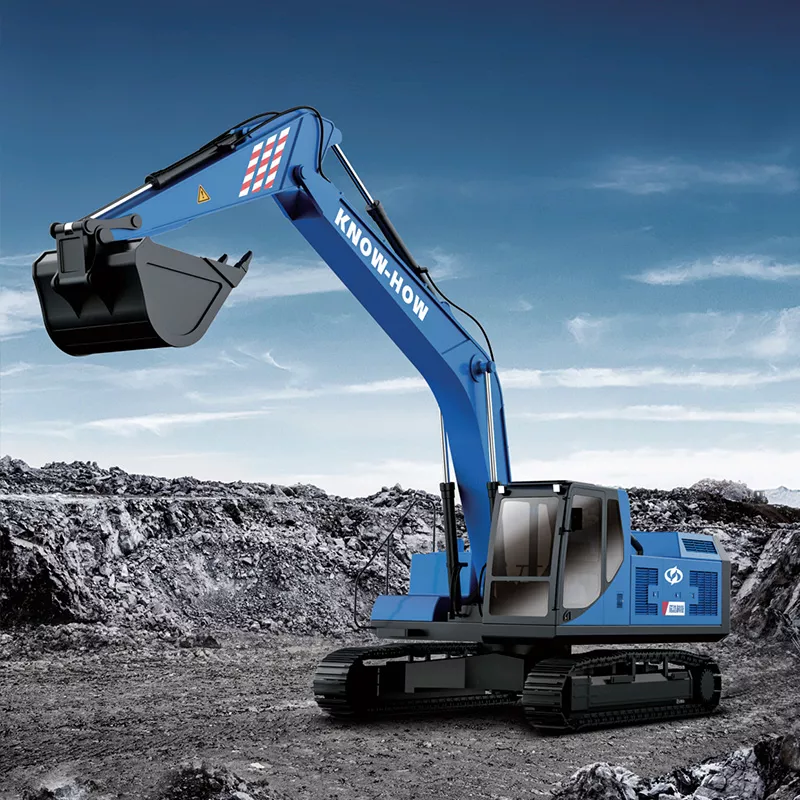

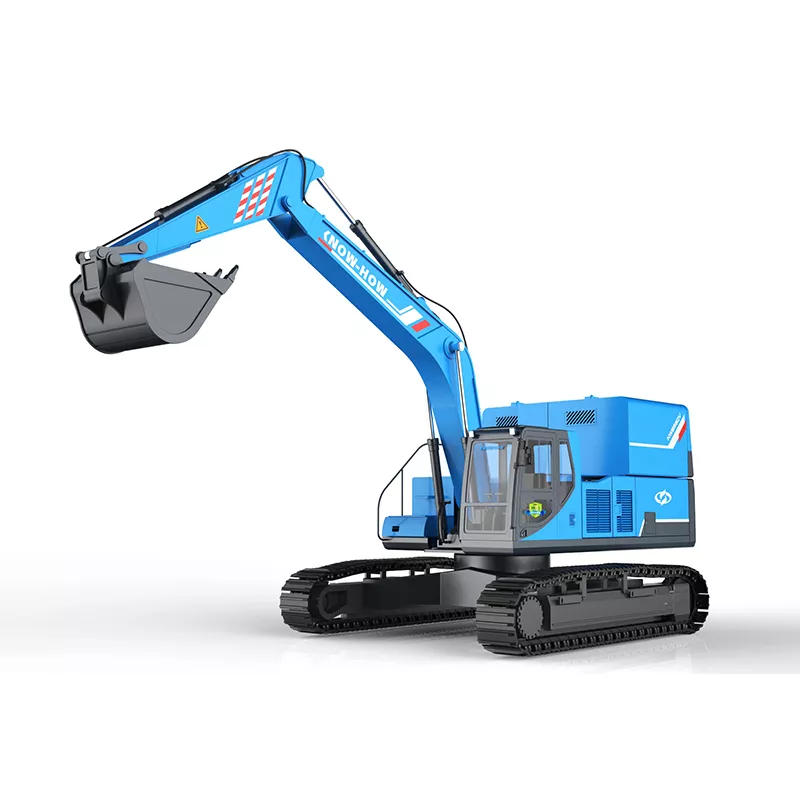

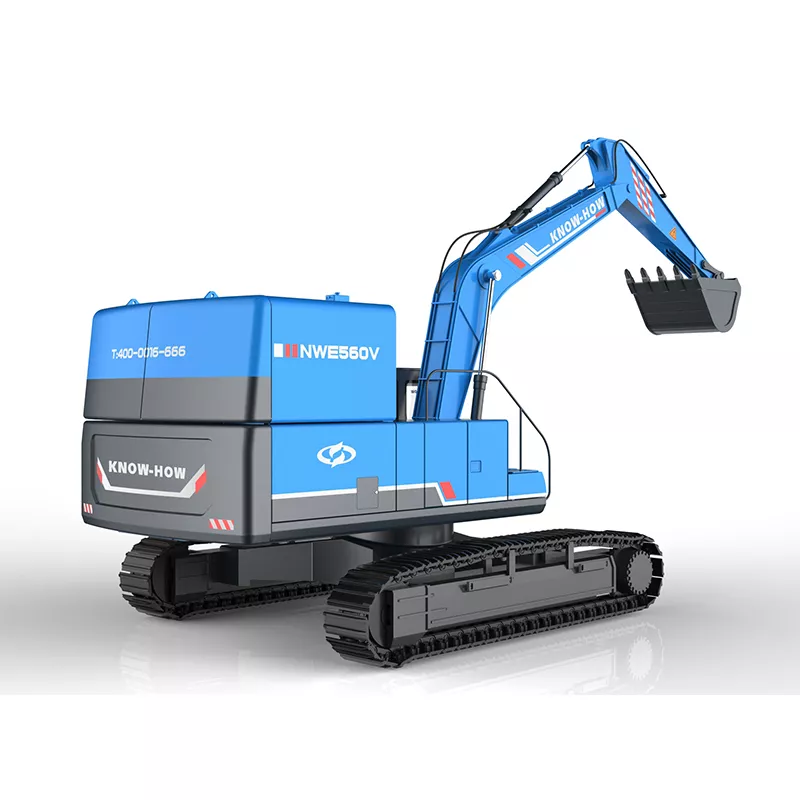

NWE560V heavey duty 350kwh battery Permanent magnet synchronous motor Elelctric Crawler Hydraulic Excavator

Параметры продукта

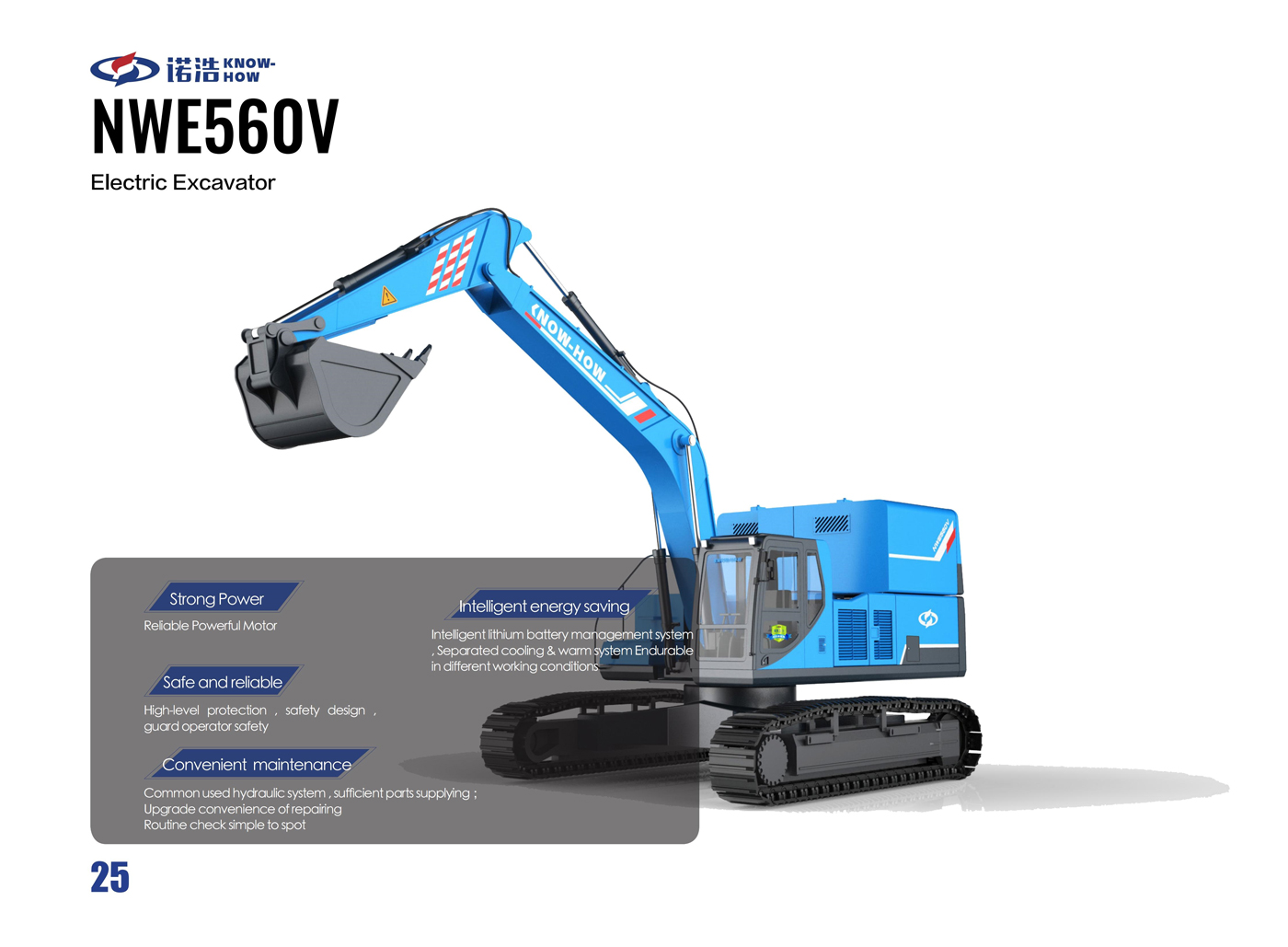

Electric Excavator NWE560V

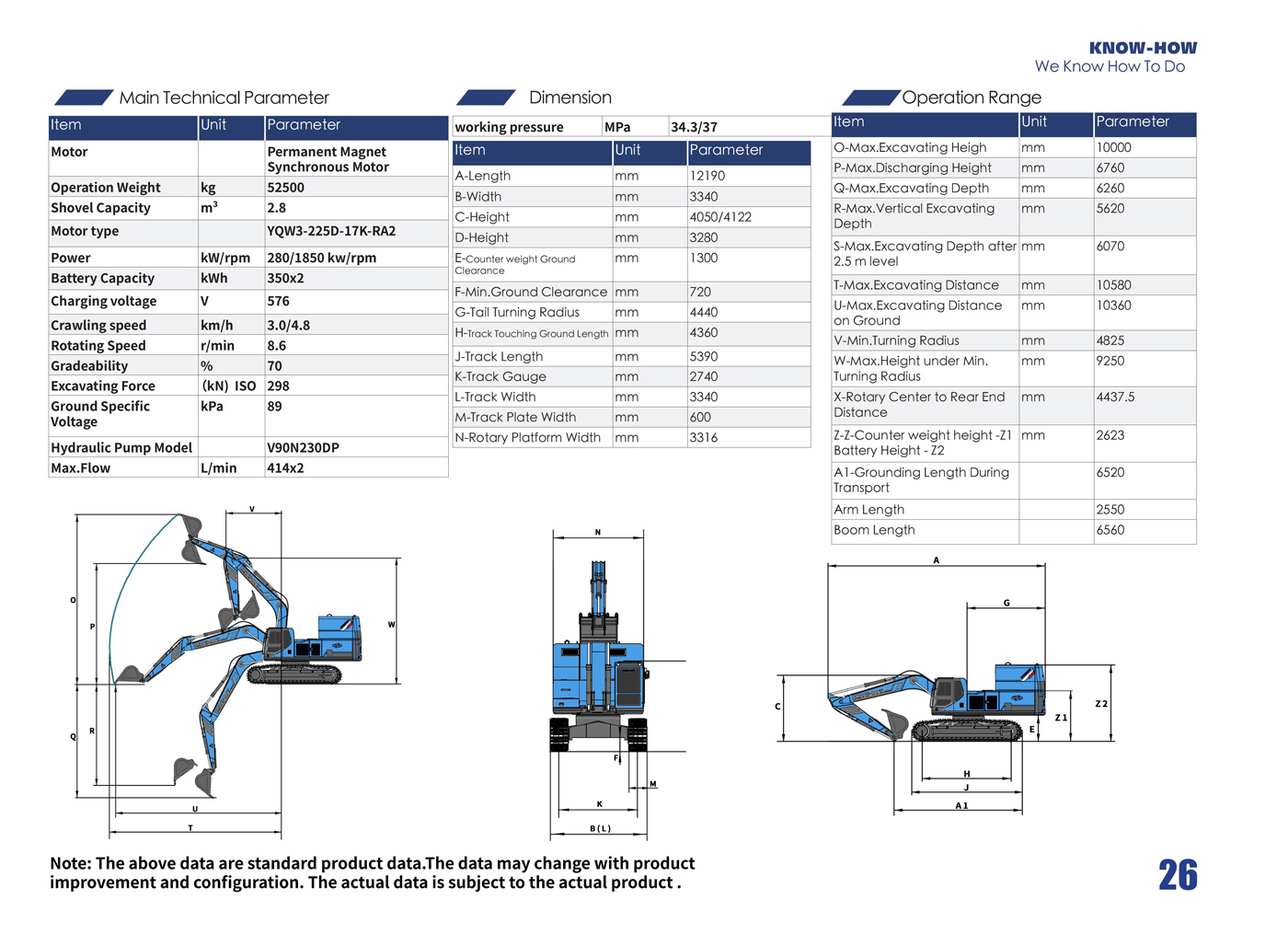

Vehicle Spec.	Unit	NWE560V
Motor Type	/	Permanent magnet synchronous motor
Vehicle Weight	KG	52500
Bucket Capacity	m³	2.8
Motor Type No.	/	YQW3-225D-17K-RA2
Rated Power	Kw/R/Min	280/1850
Battery Capacity	Kwh	350*2
Rated Voltage	V	576
Walk Speed	km/h	3.0/4.8
Turning Circle Speed	r/min	8.6
Max Gradeability	Degree	70
Bucket Digging Power	KN	298
Ground pressure	kPa	89
Hydraulic Pump type	/	V90N230DP
Maximum discharge	L/min	414x2
Bucket Rod length	mm	2550
Swing Arm Length	mm	6560
A-Total Length	mm	12190
B-Total Width	mm	3340
C-Total Height(Swing Arm)	mm	4050/4122
D-Total Height(Cabin)	mm	3280
E-Ground Clearance	mm	1300
F-Ground Cleance	mm	720
G-Rear Tail Turning Radius	mm	4440
H-Crawler on ground length	mm	4360
J-Crawler Total Length	mm	5390
K-Rail Distance	mm	2740
L-Crawler Width	mm	3340
M-Crawler Plate Width	mm	600
N-Cabin Height	mm	3316
O-Max Digging Height	mm	10000
P-Max Dump Height	mm	6760
Q-Max Digging Depth	mm	6260
R-Max vertical Digging Depth	mm	5620
S-2.5m Digging Depth	mm	6070
T-Max Digging Distance	mm	10580
U-Max.digging distance on ground	mm	10360
V-Min Turn Radius	mm	4825
W-Max. height at min. turn radius	mm	9250
X-Distance rotation center to rear	mm	4437.5
Z-Counterweight Clearance	mm	2623
A1-On Ground Length	mm	6520
